1.0 – 400sqmm Pvc Single Core Cable , Pvc Sheathed Wiring Stranded Copper Conductor

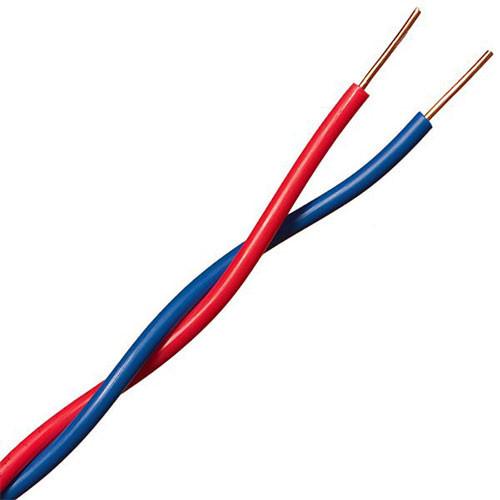

1.0 – 400sqmm Pvc Single Core Cable , Pvc Sheathed Wiring Stranded Copper Conductor image

Get a Quote Email to us

Brand Name :
HOLD-ONE

Certification :
KEMA/CE/TUV/ISO/CNAS

Place of Origin :
China

MOQ :
500m

Price :
USD 0.18-5.76/M

Payment Terms :
L/C, T/T

Delivery Time :
7 Days

Packaging Details :
Wooden Drum

Insulation Color :
Blue,Brown,Yellow/Green

Conductor Temp :
70 degree

Sample :
Available

Insulation :
PVC

Armoured :
Steel Tape

Jacket :
PVC

Warranty :
2 years

Single-Core Stranded Copper Conductor PVC Insulated Cables From 1.0SQ.MM to 400 SQ.MM

Applications: PVC Insulated Cable With Aluminum Conductor is applicable to the fixed routing in the power distribution network or the industrial equipment with power frequency rated voltage of 1kV and below.

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.

Application Standard: IEC/BS/UL/GB Standards

Type: PVC Insulated Electric Cable

Conductor: Copper or Aluminum
Insulation: Polyvinyl chloride (PVC)
Filler: Polypropylene tape (pp tape)
Wrap Tape: Non-woven fabric or PP wrapping tape
Armour: STA/SWA/AWA Armoured or Unarmoured
Outer Sheath: Polyvinyl chloride (PVC)
Standards: CCC/UL/CE Certificate

Properties

High insulation, excellent properties, bright colour.

Cable with a PVC insulation or sheathing is flame retardant, which is an important consideration for electric cables in most applications. PVC can be made resistant to a wide range of chemicals including oils, acids and alkalis, and is tough, durable and resistant to abrasion. The addition of various additives can improve its temperature range, typically from -40 to 105°C, as well as the resistance to sunlight, reduced smoke emission and improved water resistance.

Technical Parameters:

Cross Section	Conductor	Conductor Screen	Insulation	Insulation Screen	Metallic Screen	Inner Sheath	Armour	Screen Layer No.	Outer Sheath	Overall Diameter	Copper Cable	Aluminum Cable
mm2	mm	mm	mm	mm	mm	mm	mm		mm	mm	kg/km	kg/km
50	8.4	0.8	10.5	0.8	0.1	2.0	0.8	2	4	86	8906	7997
70	10	0.8	10.5	0.8	0.1	2.1	0.8	2	4	90	9944	8671
95	11.5	0.8	10.5	0.8	0.1	2.1	0.8	2	4	94	11112	9375
120	13	0.8	10.5	0.8	0.1	2.2	0.8	2	4	97	12253	10059
150	14.5	0.8	10.5	0.8	0.1	2.3	0.8	2	4	101	13557	10800
185	16.2	0.8	10.5	0.8	0.1	2.3	0.8	2	4	105	15059	11645
240	18.4	0.8	10.5	0.8	0.1	2.4	0.8	2	4	110	17249	12837
300	20.5	0.8	10.5	0.8	0.1	2.5	0.8	2	5	115	19603	14061
400	23.5	0.8	10.5	0.8	0.1	2.6	0.8	2	5	122	23151	15874
500	26.5	0.8	10.5	0.8	0.1	2.8	0.8	2	5	129	27045	17807

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
