0.6/1kv XLPE LS0H Rz1 K LV Power Cable Flexible Halogen Free Cable

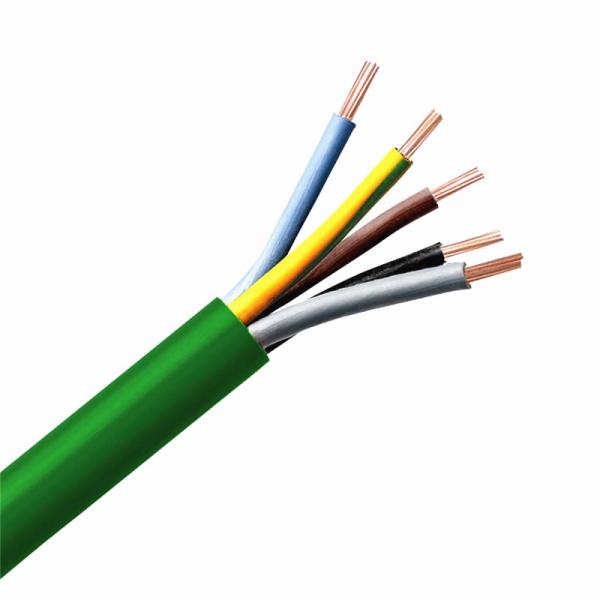

0.6/1kv XLPE LS0H Rz1 K LV Power Cable Flexible Halogen Free Cable image
I. Application
They are designed for fixed applications, produced with flexible conductors in order to facilitate installations with sinuous courses.
These cables are normally used for installation to increase the level of security . Places where ere fire, smoke emission and toxic fumes create a potential threat to life and equipment.
II. Standard
III. Characters
IV. Cable Construction
V. Packing Material
| Conductors | |||||
| Size | Max. dia. of wires in conductor | Maximum resistance of conductor at 20 °C | Size | Max. dia. of wires in conductor | Maximum resistance of conductor at 20 °C |
| mm2 | mm | Ω/KM | mm2 | mm | Ω/KM |
| 1.5 | 0.26 | 13.3 | 95 | 0.51 | 0.206 |
| 2.5 | 0.26 | 7.98 | 120 | 0.51 | 0.161 |
| 4 | 0.31 | 4.95 | 150 | 0.51 | 0.129 |
| 6 | 0.31 | 3.3 | 185 | 0.51 | 0.106 |
| 10 | 0.41 | 1.91 | 240 | 0.51 | 0.0801 |
| 16 | 0.41 | 1.21 | 300 | 0.51 | 0.0641 |
| 25 | 0.41 | 0.78 | 400 | 0.51 | 0.0486 |
| 35 | 0.41 | 0.554 | 500 | 0.61 | 0.0384 |
| 50 | 0.41 | 0.386 | 630 | 0.61 | 0.0287 |
| 70 | 0.51 | 0.272 | / | / |
/
|
| RZ1-K CABLE SINGLE CORE | |||||
| No. of core | Size | Insulation Nominal thickness | Sheath Nominal thickness | Approx. cable over all dia. | Approx. Weight |
| / | mm2 | mm | mm | mm | kg/km |
| 1 | 1.5 | 0.7 | 1.4 | 5.8 | 46 |
| 1 | 2.5 | 0.7 | 1.4 | 6.3 | 58 |
| 1 | 4 | 0.7 | 1.4 | 6.8 | 76 |
| 1 | 6 | 0.7 | 1.4 | 7.9 | 101 |
| 1 | 10 | 0.7 | 1.4 | 9.1 | 145 |
| 1 | 16 | 0.7 | 1.4 | 10.4 | 206 |
| 1 | 25 | 0.9 | 1.4 | 12.3 | 305 |
| 1 | 35 | 0.9 | 1.4 | 13.6 | 400 |
| 1 | 50 | 1.0 | 1.4 | 15.5 | 547 |
| 1 | 70 | 1.1 | 1.4 | 17.6 | 740 |
| 1 | 95 | 1.1 | 1.5 | 19.8 | 980 |
| 1 | 120 | 1.2 | 1.5 | 22.7 | 1226 |
| 1 | 150 | 1.4 | 1.6 | 24.5 | 1517 |
| 1 | 185 | 1.6 | 1.6 | 27.2 | 1858 |
| 1 | 240 | 1.7 | 1.7 | 30.5 | 2381 |
| 1 | 300 | 1.8 | 1.8 | 33.9 | 2952 |
| 1 | 400 | 2.0 | 1.9 | 38.5 | 3893 |
| 1 | 500 | 2.2 | 2.0 | 43.2 | 4845 |
| 1 | 630 | 2.4 | 2.2 | 47.5 | 6070 |
We are China 0.6/1kv XLPE LS0H Rz1 K LV Power Cable Flexible Halogen Free Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
