0.6 / 1kv XLPE Insulation Flexible Armored Cable Flame Retardant Grey Outer Sheath

China 0.6 / 1kv XLPE Insulation Flexible Armored Cable Flame Retardant Grey Outer Sheath supplier

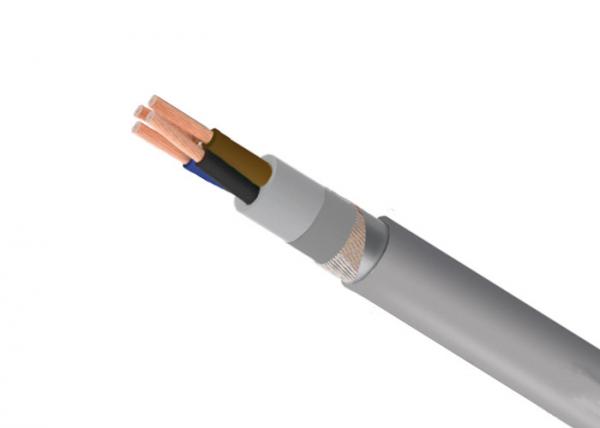

0.6 / 1kv XLPE Insulation Flexible Armored Cable Flame Retardant Grey Outer Sheath image

Get a Quote Email to us

Brand Name :
CN CABLE

Model Number :
YJV

Certification :
CE

Place of Origin :
Henan

MOQ :
1000meters

Packaging Details :
wooden drum. Iron-wooden drum

Conductor :
Class 1 Solid copper/ Class 2 Stranded copper

Insulation :
XLPE

Filler :
HFFR (Halogen free flame retardant)

Inner Sheath :
HFFR (Halogen free flame retardant)

Armour :
Galvanized flat steel wires and flat bare copper wires covered with an open counter spiral of galvanized steel tape

Outer Sheath :
HFFR (Halogen free flame retardant)

Outer Sheath Colour :
Grey

0.6 / 1kv XLPE Insulation Flexible Armored Cable Flame Retardant Grey Outer Sheath

APPLICATION:
The Low Smoke Zero Halogen (LSZH) cable is used for industrial applications. Suitable for underground laying and where there is mechanical compulsion.

CHARACTERISTICS:
Voltage Rating Uo/U
0.6/1kV
Test Voltage
3.5kV AC
Temperature Rating
Maximum Operating: 90ºC
Maximum Short-Circuit: 250°C
Minimum Bending Radius
15 x overall diameter
CONSTRUCTION:
Conductor
Class 1 Solid copper
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Inner Sheath
HFFR (Halogen free flame retardant)
Armour
Galvanized flat steel wires and flat bare copper wires covered
with an open counter spiral of galvanized steel tape
Outer Sheath
HFFR (Halogen free flame retardant)
Outer Sheath Colour
Grey

DIMENSIONS

NO. OF
CORES		 NOMINAL CROSS
SECTIONAL AREA
mm²		 NOMINAL DIAMETER
OF CONDUCTOR
mm		 NOMINAL THICKNESS
OF INSULATION
mm		 NOMINAL THICKNESS
OF OUTER SHEATH
mm		 NOMINAL OVERALL
DIAMETER
mm		 NOMINAL
WEIGHT
kg/km
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5		 1.5/1.5
2.5/2.5
4/4
6/6
10/10
16/16
25/16
35/16
50/25
70/35
95/50
1.5/1.5
2.5/2.5
4/4
6/6
10/10
16/16
25/16
35/16
50/25
70/35
95/50
120/70
150/70
1.5/1.5
2.5/2.5
4/4
6/6
10/10
16/16
25/16
35/16
50/25
70/35
95/50
120/70
150/70
1.5/1.5
2.5/2.5
4/4
6/6
10/10
16/16
25/16
35/16		 1.36
1.75
2.22
2.71
3.85
4.70
5.85
6.90
8.10
9.70
11.40
1.36
1.75
2.22
2.71
3.85
4.70
5.85
6.90
8.10
9.70
11.40
12.65
14.15
1.36
1.75
2.22
2.71
3.85
4.70
5.85
6.90
8.10
9.70
11.40
12.65
14.15
1.36
1.75
2.22
2.71
3.85
4.70
5.85
6.90		 0.70
0.70
0.70
0.70
0.70
0.70
0.90
0.90
1.00
1.10
1.10
0.70
0.70
0.70
0.70
0.70
0.70
0.90
0.90
1.00
1.10
1.10
1.20
1.40
0.70
0.70
0.70
0.70
0.70
0.70
0.90
0.90
1.00
1.10
1.10
1.20
1.40
0.70
0.70
0.70
0.70
0.70
0.70
0.90
0.90		 1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.90
2.00
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
2.00
2.10
2.20
2.40
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.90
2.10
2.20
2.40
2.50
1.80
1.80
1.80
1.80
1.80
1.80
1.80
1.90		 13.6
14.3
15.3
16.3
18.5
20.2
22.5
24.6
27.6
31.4
35.2
14.0
14.8
15.9
16.9
19.4
21.2
24.6
26.0
29.4
33.9
38.0
42.5
47.2
14.7
15.7
16.8
18.0
20.7
22.8
26.8
28.5
32.4
38.4
42.9
47.0
52.0
15.5
16.5
17.8
19.1
22.2
24.5
28.9
31.1		 389
451
534
633
857
1096
1292
1574
2043
2711
3669
429
505
608
731
975
1268
1697
1908
2537
3430
4626
5960
7136
467
554
673
815
1132
1487
2039
2334
3120
4589
6101
7354
8818
519
620
760
928
1300
1722
2389
2786

ELECTRICAL CHARACTERISTICS

NOMINAL CROSS
SECTIONAL AREA
mm²		 EQUIVALENT COPPER CROSS SECTION AREA
OF ARMOUR CONDUCTOR
mm²		 MAXIMUM CONDUCTOR DC
RESISTANCE AT AT 20°C
ohm/km
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400		 1.5
2.5
4
6
10
16
16
16
25
35
50
60
75
95
100
100
100		 12.1
7.41
4.61
3.08
1.83
1.15
0.727
0.524
0.387
0.268
0.193
0.153
0.124
0.0991
0.0754
0.0601
0.0471

CURRENT CARRYING CAPACI

NOMINAL CROSS
SECTIONAL AREA
mm²		 RATED CURRENT
A
1 2 3 & 4 3 111
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400		 33
43
57
72
99
131
177
217
265
336
415
485
557
647
775
894
1061		 25
34
44
57
77
102		 24
32
42
53
73
97
132
162
197
250
308
359
412
475
564
649
761		 26
34
44
56
77
102
138
170
207
263
325
380
437
507
604
692
812		 32
42
56
71
96
128
173
212
258
328
404
471
541
626
749
864
1018

We are China 0.6 / 1kv XLPE Insulation Flexible Armored Cable Flame Retardant Grey Outer Sheath manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
