0.6 – 1KV XLPE Aluminium Overhead Power Cables With Lighting Conductor

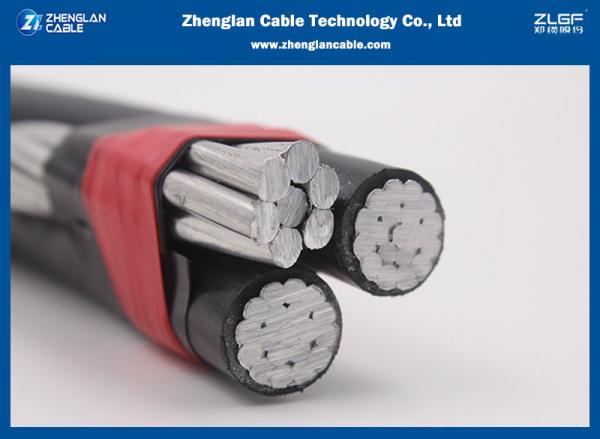

0.6 – 1KV XLPE Aluminium Overhead Power Cables With Lighting Conductor image
Brand Name :
Zhenglan Cable
Model Number :
JKYJLV-0.6/1kv
Certification :
ISO 9001:2016，ISO 14001:2016
Place of Origin :
Henan, China
MOQ :
1000 meters
Payment Terms :
L/C, T/T,
Supply Ability :
100Km/Month
Delivery Time :
15-30 days
Packaging Details :
Wooden case, wooden-steel case
Insulation Material :
XLPE
Standards :
IEC60502, IS:14255-1995
Conductor Material :
aluminum strand
Application :
Overhead or Power station
Rated Voltage :
0.6/1kv
Type :
phase conductor, insulated/bare messenger conductor, street light condctor
Identificaton of phase conductor :
ridges
0.6-1kv XLPE insulated aerial bunched cable without lighting conductor
Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: XLPE
Type: Low Voltage as your request
Application: Overhead or Power station
Conductor Material:
Standards:IEC60502, NF C33-209, GB 12527-90 ASTM
Packaging Details: Wooden case, wooden-steel case
ABC Cable Application:
Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation,maintenance and operative cost. The cables are designed for aerial power lines and room-entrance wires with AC rated voltage 1kV and below.
ABC Cable Standard:
GB/T12527,1179 ,IEC60502 ,NFC 33-209 ,BS 7870 ,ANSI/ICEA S-76-474 AS/NZS 3560.1 etc.
| Model | Description |
| JKV-0.6/1 | Copper core PVC insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLV-0.6/1 | Aluminum core PVC insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLHV-0.6/1 | Aluminum alloy core PVC insulated aerial insulated cable rated voltage 0.6/1kV |
| JKY-0.6/1 | Copper core PE insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLY-0.6/1 | Aluminum core PE insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLHY-0.6/1 | Aluminum alloy core PE insulated aerial insulated cable rated voltage 0.6/1kV |
| JKYJ-0.6/1 | Copper core XLPE insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLYJ-0.6/1 | Aluminum core XLPE insulated aerial insulated cable rated voltage 0.6/1kV |
| JKLHYJ-0.6/1 | Aluminum alloy core XLPE insulated aerial insulated cable rated voltage 0.6/1kV |
0.6/1kv ABC cable models and specifications
| 1.1kv Stranded & Compacted Aluminium Phase Conductor, and Stranded Messenger Conductor with All Aluminium Alloy, Phase Conductor is insulated with XLPE (Sioplas) Compound, Messenger is either insulated or bare Referred specification IS:14255-1995 | |||||||||||
| No. | Description and Type of Cable | Number of Wires | Thickness of XLPE Insulation | Approx overall Diameter | Approx Weight of Cable | Breaking Load of Messenger | Maximum D.C Resistance(Ohms/Km) | AC Current Rating (Amps) | |||
| Phase | Messenger | Phase | Messenger | ||||||||
| mm | mm | mm | Kg/KM | KN (min) | Phase | Messenger | In air at 40°C | ||||
| With insulated messenger conductor without lighting conductor | |||||||||||
| 1 | 1 C x 16 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 20 | 165 | 7 | 1.91 | 1.38 | 72 |
| 2 | 3 C x 16 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 22 | 301 | 7 | 1.91 | 1.38 | 64 |
| 3 | 1 Cx25 mm2 + 25mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 22.4 | 195 | 7 | 1.2 | 1.38 | 99 |
| 4 | 3 C x 25 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 25 | 390 | 7 | 1.2 | 1.38 | 84 |
| 5 | 1 Cx35 mm2 + 25mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 27.3 | 227 | 7 | 0.868 | 1.38 | 120 |
| 6 | 3 C x 35 mm2 + 25 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 27.4 | 486 | 7 | 0.868 | 1.38 | 105 |
| 7 | 1 Cx35 mm2 + 35mm2(insulated) | 7 | 7 | 1.2 | 1.2 | 28 | 259 | 10.1 | 0.868 | 0.986 | 120 |
| 8 | 3 C x 35 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.2 | 1.2 | 28.4 | 518 | 10.1 | 0.868 | 0.986 | 105 |
| 9 | 1 C x 50 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.5 | 1.2 | 29 | 317 | 10.1 | 0.641 | 0.986 | 150 |
| 10 | 3 C x 50 mm2 + 35 mm2 (insulated) | 7 | 7 | 1.5 | 1.2 | 32.3 | 692 | 10.1 | 0.641 | 0.986 | 130 |
| 11 | 3Cx70 mm2 + 50 mm2 (insulated) | 7 | 7 | 1.5 | 1.5 | 37.5 | 939 | 14 | 0.443 | 0.689 | 155 |
| 12 | 3 C x 70 mm2 + 70 mm2 (insulated) | 7 | 7 | 1.5 | 1.5 | 39 | 1002 | 19.7 | 0.443 | 0.492 | 155 |
| 13 | 3 C x 95 mm2 + 70 mm2 (insulated) | 19 | 7 | 1.5 | 1.5 | 42.7 | 1237 | 19.7 | 0.32 | 0.492 | 190 |
| 14 | 3 C x 120 mmz + 70 mm2 (insulated) | 19 | 7 | 1.6 | 1.5 | 46 | 1482 | 19.7 | 0.253 | 0.492 | 220 |
| 15 | 3 C x 150 mm2 + 70 mm2 (insulated) | 19 | 7 | 1.8 | 1.5 | 50 | 1791 | 19.7 | 0.206 | 0.492 | 250 |
| With bare messenger conductor without lighting conductor | |||||||||||
| 1 | 1 C x 16 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | N.A* | 18.5 | 137 | 7 | 1.91 | 1.38 | 72 |
| 2 | 3 C x 16 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | -do- | 19.3 | 272 | 7 | 1.91 | 1.38 | 64 |
| 3 | 1 C x 25 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | -do- | 19.5 | 167 | 7 | 1.2 | 1.38 | 99 |
| 4 | 3Cx25 mm2 + 25mm2(bare) | 7 | 7 | 1.2 | -do- | 20.5 | 362 | 7 | 1.2 | 1.38 | 84 |
| 5 | 1 C x 35 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | -do- | 22 | 199 | 7 | 0.868 | 1.38 | 120 |
| 6 | 3 C x 35 mm2 + 25 mm2 (bare) | 7 | 7 | 1.2 | -do- | 23.5 | 458 | 7 | 0.868 | 1.38 | 105 |
| 7 | 1 C x 35 mm2 + 35 mm2 (bare) | 7 | 7 | 1.2 | -do- | 24.6 | 226 | 10.1 | 0.868 | 0.986 | 120 |
| 8 | 3Cx35 mm2 + 35 mm2 (bare) | 7 | 7 | 1.2 | -do- | 25 | 485 | 10.1 | 0.868 | 0.986 | 105 |
| 9 | 1 C x 50 mm2 + 35 mm2 (bare) | 7 | 7 | 1.5 | -do- | 26.6 | 284 | 10.1 | 0.641 | 0.986 | 150 |
| 10 | 3Cx50 mm2 + 35mm2(bare) | 7 | 7 | 1.5 | -do- | 26.8 | 659 | 10.1 | 0.641 | 0.986 | 130 |
| 11 | 3 C x 70 mm2 + 50 mm2 (bare) | 7 | 7 | 1.5 | -do- | 31.2 | 890 | 14 | 0.443 | 0.689 | 155 |
| 12 | 3Cx70 mm2 + 70mm2(bare) | 7 | 7 | 1.5 | -do- | 34.4 | 946 | 19.7 | 0.443 | 0.492 | 155 |
| 13 | 3 C x 95 mm2 + 70 mm2 (bare) | 19 | 7 | 1.5 | -do- | 36 | 1179 | 19.7 | 0.32 | 0.492 | 190 |
| 14 | 3 C x 120 mm2 + 70 mm2 (bare) | 19 | 7 | 1.6 | -do- | 38 | 1425 | 19.7 | 0.253 | 0.492 | 220 |
| 15 | 3 C x 150 mm2 + 70 mm2 (bare) | 19 | 7 | 1.8 | -do-— | 40 | 1735 | 19.7__ | 0.206 | 0.492 | 250 ― |
| No. | Description and Type of Cable | Number of Wires | Thickness of XLPE Insulation | Approx overall Diameter | Approx Weight of Cable | Breaking | Maximum D.C Resistance | AC Current Rating at 40°C | |||
| Phase | Messenger | Phase | Messenger | Load of Messenger | Ohms/Km | ||||||
| mm | mm | mm | Kg/KM | KN (min) | Phase | Messenger | In air at 40°C | ||||
| With insulated messenger conductor and lighting conductor | |||||||||||
| 1 | 3 C x 16 mm2 + 25 mm2 (insulated)+16 mm2 | 7 | 7 | 1.2 | 1.2 | 23.5 | 369 | 7 | 1.91 | 1.38 | 62 |
| 2 | 3 Cx25 mm2 + 25 mm2 (insulated)+16 mm2 | 7 | 7 | 1.2 | 1.2 | 25 | 457 | 7 | 1.2 | 1.38 | 82 |
| 3 | 3Cx35 mm2 + 25mm2(insulated)+16mm2 | 7 | 7 | 1.2 | 1.2 | 27.5 | 554 | 7 | 0.868 | 1.38 | 103 |
| 4 | 3 C x 35 mm2 + 35 mm2 (insulated)+16 mm2 | 7 | 7 | 1.2 | 1.2 | 28.4 | 586 | 10.1 | 0.868 | 0.986 | 103 |
| 5 | 3Cx50 mm2 + 35mm2(insulated)+16mm2 | 7 | 7 | 1.5 | 1.2 | 32.5 | 760 | 10.1 | 0.641 | 0.986 | 127 |
| 6 | 3Cx70 mm2 + 50mm2(insulated)+16mm2 | 7 | 7 | 1.5 | 1.5 | 37.5 | 1007 | 14 | 0.443 | 0.689 | 154 |
| 7 | 3Cx70 mm2 + 70mm2(insulated)+16mm2 | 7 | 7 | 1.5 | 1.5 | 39.5 | 1070 | 19.7 | 0.443 | 0.492 | 154 |
| 8 | 3 C x 95 mm2 + 70 mm2 (insulated)+16 mm2 | 19 | 7 | 1.5 | 1.5 | 42.5 | 1304 | 19.7 | 0.32 | 0.492 | 188 |
| 9 | 3 C x 120 mm2 + 70 mm2 (insulated)+16 mm2 | 19 | 7 | 1.6 | 1.5 | 46.8 | 1550 | 19.7 | 0.253 | 0.492 | 218 |
| 10 | 3 C x 150 mm2 + 70 mm2 (insulated)+16 mm2 | 19 | 7 | 1.8 | 1.5 | 50.8 | 1860 | 19.7 | 0.206 | 0.492 | 248 |
| With bare messenger conductor and lighting conductor | |||||||||||
| 1 | 3 C x 16 mm2 + 25 mm2 (bare)+16 mm2 | 7 | 7 | 1.2 | N.A* | 19.5 | 340 | 7 | 1.91 | 1.38 | 62 |
| 2 | 3 C x 25 mm2 + 25 mm2 (bare)+16 mm2 | 7 | 7 | 1.2 | -do- | 20.5 | 429 | 7 | 1.2 | 1.38 | 82 |
| 3 | 3 C x 35 mm2 + 25 mm2 (bare)+16 mm2 | 7 | 7 | 1.2 | -do- | 23.5 | 526 | 7 | 0.868 | 1.38 | 103 |
| 4 | 3 C x 35 mm2 + 35 mm2 (bare)+16 mm2 | 7 | 7 | 1.2 | -do- | 25 | 553 | 10.1 | 0.868 | 0.986 | 103 |
| 5 | 3 C x 50 mm2 + 35 mm2 (bare)+16 mm2 | 7 | 7 | 1.5 | -do- | 26.8 | 727 | 10.1 | 0.641 | 0.986 | 127 |
| 6 | 3 C x 70 mm2 + 50 mm2 (bare)+16 mm2 | 7 | 7 | 1.5 | -do- | 31.5 | 958 | 14 | 0.443 | 0.689 | 154 |
| 7 | 3 C x 70 mm2 + 70 mm2 (bare)+16 mm2 | 7 | 7 | 1.5 | -do- | 34.5 | 1013 | 19.7 | 0.443 | 0.492 | 154 |
| 8 | 3 C x 95 mm2 + 70 mm2 (bare)+16 mm2 | 19 | 7 | 1.5 | -do- | 37 | 1248 | 19.7 | 0.32 | 0.492 | 188 |
| 9 | 3 C x 120 mm2 + 70 mm2 (bare)+16 mm2 | 19 | 7 | 1.6 | -do- | 39 | 1493 | 19.7 | 0.253 | 0.492 | 218 |
| 10 | 3 C x 150 mm2 + 70 mm2 (bare)+16 mm2 | 19 | 7 | 1.8 | -do- | 40 | 1803 | 19.7 | 0.206 | 0.492 | 248 |
