0.6/1kv Single Core Flexible Copper Cable (1.5-630sqmm) Cu/XLPE/PVC LV xlpe insulated power cable IEC60502-1

Application:

RV-K cable can be buried or installed in conduit as well as outdoors without requiring additional protection. They are suitable for all types of Low Voltage (LV) industrial-type connections, including urban grids and building installations with a voltage rating of 600/1000V. Its high flexibility makes the installation process substantially easier and, as a result, is particularly suitable for use in difficult layouts.

Construction:
Conductors:Class 5 as per IEC 60228, BS EN 60228 can also be supplied upon request.
Insulation:XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.

Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

0.6/1kv Single Core Flexible Copper Cable (1.5-630sqmm) Cu/XLPE/PVC LV xlpe insulated power cable IEC60502-1 Parameters Table:

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
1×1.5 1.6 0.7 1.4 6.0 50
1×2.5 2.0 0.7 1.4 6.5 70
1×4 2.25 0.7 1.4 7.0 80
1×6 2.76 0.7 1.4 7.5 110
1×10 4.0 0.7 1.4 8.5 150
1×16 5.0 0.7 1.4 9.5 215
1×25 6.3 0.9 1.4 11.5 315
1×35 7.4 0.9 1.4 12.0 415
1×50 8.8 1.0 1.4 13.0 555
1×70 10.6 1.1 1.4 15.0 760
1×95 12.4 1.1 1.5 17.0 1025
1×120 14.0 1.2 1.5 18.5 1270
1×150 15 .5 1.4 1.6 21.5 1575
1×185 17.4 1.6 1.6 23.0 1955
1×240 20.3 1.7 1.7 26.0 2470
1×300 22.7 1.8 1.8 28.0 3155
1×400 25.4 2.0 1.9 32.0 4049
1×500 28.8 2.2 2.0 36.0 5100
1×630 30.4 2.4 2.2 40.0 6410

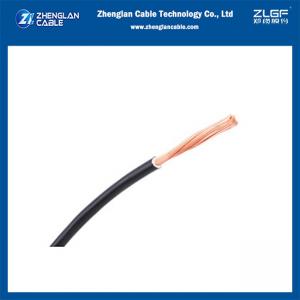

0.6/1kv Single Core Flexible Copper Cable (1.5-630sqmm) Cu/XLPE/PVC LV xlpe insulated power cable IEC60502-1 Products show:

Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided

About Zhenglan Cable

We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
1-35kv overhead transmission line use insulated conductor
power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
300/300V, 300/500V, 450/750V cotrol cable, house wire
We promise you real quality, competitive price, on-time delivery, one-year guarantee.

We are China 0.6/1kv Single Core Flexible Copper Cable 1.5-630sqmm Cu/XLPE/PVC LV Xlpe Insulated IEC60502-1 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
