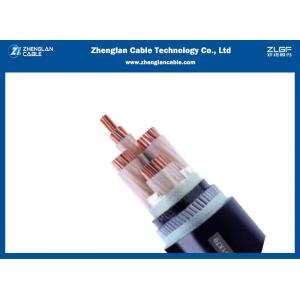

0.6/1KV LV Low Voltage Power Cable 4x25sqmm Cu(AL)/XLPE(PVC)/ PVC Insulated Aroured Cable IEC60502-1

Application:

0.6/1KV LV Low Voltage Power Cable 4x25sqmm Cu(AL)/XLPE(PVC)/ PVC Insulated Aroured Cable are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.

Construction:

Conductors: Plain annealed stranded copper

Insulation: XLPE (Cross linked polyethylene)

Bedding: PVC (Polyvinyl-Chloride)

Armour/Protection: SWA (Galvanised single wire armour)

Sheath/Jacket: PVC (Polyvinyl-Chloride)

Colour: Black

Voltage: 600/1000v

Operating temperature: Maximum 90°C. Minimum bending 0°C

Core identification:

Two Core – Brown, Blue

Three Core – Brown, Black & Grey (Optional: Brown, Blue & Green/Yellow)

Four Core – Brown, Black, Grey & Blue (Optional: Brown, Black, Grey & Green/Yellow)

Five Core – Numbered Cores (Optional: Brown, Black, Grey, Blue + Green/Yellow)

Six Core and Above – Numbered Cores (optional numbered + Green and Yellow)

Standard:

IEC60502-1, GB/T 12706

LV insulated cable Parameters:

Four cores(armoured)

Nominal

Area

Approx

Conductor

Diameter

Nominal

Insulation

thickness

Nominal

bedding

thickness

Nominal

Steel Wire

dia.

Nominal

Sheath

thickness

Approx.

Overall

Diameter

Approx.

Weight

mm² mm mm mm mm mm mm Kg/km
4×1.5 1.6 0.7 1 0.9 1.8 15 415
4×2.5 2 0.7 1 0.9 1.8 17.5 490
4×4 2.6 0.7 1 0.9 1.8 19 600
4×6 3.1 0.7 1 0.9 1.8 20 730
4×10 4 0.7 1 1.25 1.8 23 970
4×16 5 0.7 1 1.6 1.8 26 1520
4×25 6.3 0.9 1 1.6 1.8 29 2010
4×35 7.4 0.9 1 1.6 1.9 31 2560
4×50 8.8 1 1 1.6 2.1 36 3350
4×70 10.6 1.1 1.2 2 2.2 40 4680
4×95 12.4 1.1 1.2 2 2.4 44 5710
4×120 14 1.2 1.4 2.5 2.5 50 7500
4×150 15.5 1.4 1.4 2.5 2.6 55 9010
4×185 17.4 1.6 1.4 2.5 2.8 61 10820
4×240 20.3 1.7 1.6 2.5 3.1 69 13630
4×300 22.7 1.8 1.6 2.5 3.2 75 16820
4×400 25.4 2 1.8 3.15 3.4 83 22230

Products show:

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

FAQ

1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 5000m.

We are China 0.6/1KV LV Low Voltage Power Cable 4x25sqmm Cu(AL)/XLPE(PVC)/ PVC Insulated manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
