0.6/1KV LV Five or Multi-Cores Power Cable (Unarmoured) , XLPE Insulated Cable according to IEC 60502-1

 China 0.6/1KV LV Five or Multi-Cores Power Cable (Unarmoured) , XLPE Insulated Cable according to IEC 60502-1 supplier

0.6/1KV LV Five or Multi-Cores Power Cable (Unarmoured) , XLPE Insulated Cable according to IEC 60502-1 image

Get a Quote Email to us

Brand Name :Zhenglan cable
Model Number :0.6/1KV Five or Multi-Cores Power Cable (Unarmoured) XLPE Insulated
Certification :3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Place of Origin :Henan, China
MOQ :300 meters
Payment Terms :L/C, T/T,
Delivery Time :12 days
Packaging Details :Wooden drum, wood and steel drum,as customer’s request
Material :99.99% oxyzen free copper
Application :power station
Insulation :XLPE
Out Sheath Color :Black or Customized
Core :5
Cable Mark :Ink printing or Embossing Content Customized
Cable Drum Length :300~450 meter per drum
characted :Unarmoured

0.6/1KV Low Voltage Five or Multi-Cores Power Cable (Unarmoured) , XLPE Insulated Cable according to IEC 60502-1

Description:
0.6/1KV XLPE Insulated Cables (Unarmoured)

IEC60502,IEC60228,GB/T 12706.1-2008
CE,CCC,KEMA,ISO

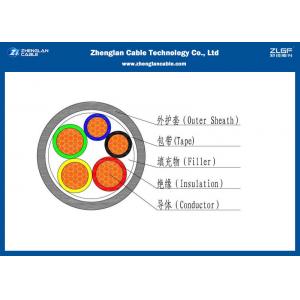

Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Noted: Insulation color as per standards or customer requirement.

Application:
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Standard:
Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request

Certificates:
CE, ROHS,KEMA and more others at request

Insulation:
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code Colour Code (1):
1 Core: Red or Black; 2 Cores: Red, Black; 3 Cores: Red, Yellow, Blue; 4 Cores: Red, Yellow, Blue, Black; 5 Cores: Red, Yellow, Blue, Black, Green; Above 5 Cores: Black Cores with White numerals

Assembly /Inner Sheath:
Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted.

Armour:
Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.

Outer Sheath:
Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.
Fire Performance of Cable Sheaths:
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

Cable Parameters:
Five or Multi-Cores Power Cable (Unarmoured)

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
5×1.5 1.38 0.7 1.4 14 260
7×1.5 1.38 0.7 1.4 15 310
10×1.5 1.38 0.7 1.4 18 395
12×1.5 1.38 0.7 1.4 18.5 440
14×1.5 1.38 0.7 1.4 19 485
19×1.5 1.38 0.7 1.4 21 600
21×1.5 1.38 0.7 1.4 22 650
24×1.5 1.38 0.7 1.4 24 730
30×1.5 1.38 0.7 1.4 25 860
40×1.5 1.38 0.7 1.4 28 1080
48×1.5 1.38 0.7 1.4 30 1250
61×1.5 1.38 0.7 1.4 33 1570
5×2.5 1.76 0.7 1.4 15 330
7×2.5 1.76 0.7 1.4 16 400
10×2.5 1.76 0.7 1.4 19.5 515
12×2.5 1.76 0.7 1.4 20 580
14×2.5 1.76 0.7 1.4 21 650
19×2.5 2 0.7 1.4 23 810
21×2.5 2 0.7 1.4 24 890
24×2.5 2 0.7 1.4 26 1000
30×2.5 2 0.7 1.4 28 1190
40×2.5 2 0.7 1.4 31 1525
48×2.5 2 0.7 1.4 34 1820
61×2.5 2 0.7 1.4 37 2240

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

We are China 0.6/1KV LV Five or Multi-Cores Power Cable (Unarmoured) , XLPE Insulated Cable according to IEC 60502-1 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
