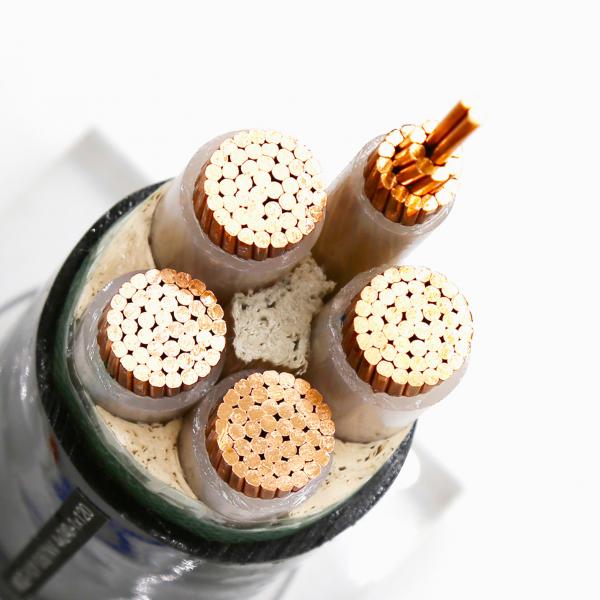

0.6/1KV Class2 Copper Conductor Cable , 3 Core Power Cable Construction PVC XLPE Insulated
0.6/1KV Class2 Copper Conductor Cable , 3 Core Power Cable Construction PVC XLPE Insulated image
Brand Name :
JHY CABLE
Model Number :
YJV power cable
Certification :
CE/CB/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
100 meters per roll or according to the customer’s request.
Conductor :
bare Copper
Core :
1/2/3/4/5
Insulation :
XLPE
Sheath :
PVC
Color :
black or customized
Voltage :
low voltage,0.6/1KV
Package :
Wooden reel
Application :
Underground, Industrial,Construction
Copper conductor XLPE insulation un-armoured PVC sheathed power cable
Production Description:
1. Introduction of YJV cable
- YJ—-XLPE insulation
- V—-PVC sheath
- The name of the YJV cable model is: XLPE insulated PVC sheathed power cable
- Cross-linked polyethylene insulated power cable has excellent thermal-mechanical properties, excellent electrical properties and chemical resistance, but also has the advantages of simple structure, light weight, laying no restrictions from the drop limit, etc., is currently widely used in urban power grids, mines And the factory's novel cable.
2. Specification
| Product name | YJV 0.6/1kv power cable |
| No.of cores | 1/2/3/4/5/3+1/3+2/4+1,etc |
| Cross section(mm2) | 1.5/2.5/4/6/10…… |
| Conductor | bare copper wire |
| Insulation | XLPE |
| Amoured | non-armoured / steel tape armoured |
| Jacket | PVC |
3. Product Technical Parameter
|
Nominal cross section (mm2) |
Insulation thickness (mm) |
Sheath thickness (mm) |
Current rating in air 30℃ (A) |
Current rating buried 20℃ (A) |
Reference weight (kg/km) |
| 1.5 | 0.7 | 1.4 | 30 | 43 | 45 |
| 2.5 | 0.7 | 1.4 | 39 | 57 | 57 |
| 4 | 0.7 | 1.4 | 52 | 74 | 75 |
| 6 | 0.7 | 1.4 | 66 | 93 | 97 |
| 10 | 0.7 | 1.4 | 91 | 127 | 142 |
| 16 | 0.7 | 1.4 | 120 | 167 | 205 |
| 25 | 0.9 | 1.4 | 159 | 216 | 304 |
4. Operating requirements
A. Working temperature
- Conductor maximum rated operating temperature 90℃;
- Conductor short circuit temperature: the maximum temperature must not exceed 250℃ and the maximum time should not exceed 5 seconds.
B. Installation and laying temperature
- Cable installation and laying temperature not lower than 0℃;
- Laying in air: ambient temperature 40℃;
- Laying in the soil: ambient temperature 25℃.
5. Application
suitable for use in power distribution lines or fixed installations with rated power-frequency voltage below and including 0.6/1kv.
6. Product Image
Product Package
7. Product standard
IEC 60502, GB/T 12706, BS 7870
8. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
9. Company information
Company Contact Information:
| OUR SERVICE | |
|
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Above we provide a wide range of products’ information, any further information you need please contact us as below: Our entire team can serve you and look forward to working with you. |
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106 |
We are China 0.6/1KV Class2 Copper Conductor Cable , 3 Core Power Cable Construction PVC XLPE Insulated manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Copper Conductor Cable, copper xlpe cable, XLPE Insulated Power CableSimilar Or Related
-
IEC60502 0.6/1KV XLPE Insulated Power Cable 4 Cores PVC Sheathed 3×50 1x25mm2 YJY
-
YJV XLPE Insulated PVC Sheathed Cable , Steel Tape Armoured Power Cable 4x25mm2 YJV22
-
Building Armoured XLPE Insulated Power Cable NH-YJV22 16mm 35mm Electric Copper Conductor
-

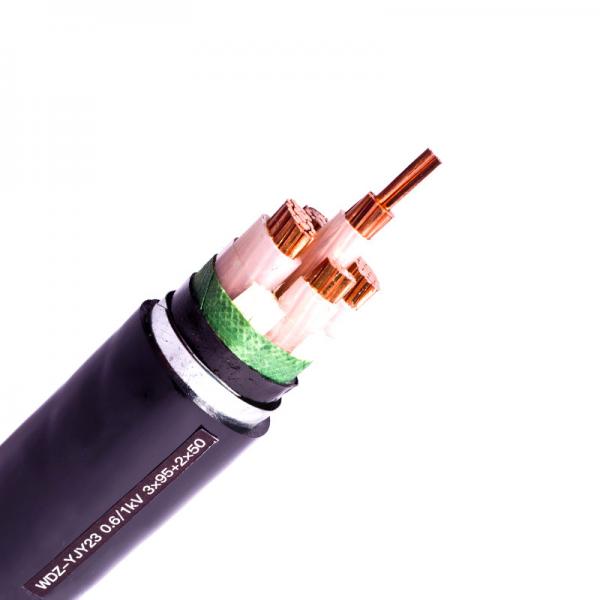

0.6/1kV 3×95 2x50mm2 5 Cores XLPE Insulated Power Cable Copper Conductor LV Steel Tape Armored
