0.6-1kv Aluminum Alloy ACAR Conductor For Aerial Power Distribution Lines

utilized as major and secondary distribution cables as well as bare overhead transmission cables. Where strength and ampacity are important factors in line design, ACAR can be used because of its good strength-to-weight ratio; for a given weight, ACAR gives more strength and ampacity than ACSR.

Product Name Aluminum Conductor Alloy Reinforced (ACAR)
Conductor Aluminum/Copper
Construction Aluminum Stranded & Aluminum Alloy Reinforce
Colors Assorted upon request
Voltage 600-1000V, 1KV-35KV
Application Used as bare overhead conductor for power distribution lines
Standards GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request

1.Standard

ASTM B524 ,B 230, B 398, IEC61089, etc Application

2.Construction

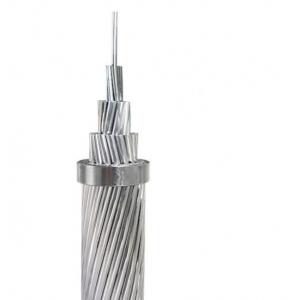

ACAR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer

3.Features

1. ACAR offers excellent balance mechanical and electrical properties.

2.It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.

3.It is a compromise choice between AAC,ACSR,and AAAC.

4.It has 1350 designates grade of pure aluminium.

5. It has 6201 designates aluminium alloy grade.

4.Part of ACAR(6201) conductors of ASTM sizes.

Size Kcmil Stranding No.& Dia.(In.) Cross Sectional Area(Square In.) Nominal Conductor Dia. (In.)

Nominal weight

(Lbs/1000FT)

Rated Strength

( Lbs)

1350 6201 1350 6201 Total
503.6 15*0.1628 4*0.1628 0.3122 0.0833 0.3955 0.814 473 10500
587.2 15*0.1758 4*0.1758 0.3644 0.0971 0.4612 0.879 551 12200
649.5 18*0.1325 19*0.1325 0.2482 0.2620 0.5102 0.927 608 16600
653.1 12*0.1854 7*0.1854 0.3240 0.1890 0.5130 0.927 612 15400
739.8 18*0.1414 19*0.1414 0.2827 0.2983 0.5810 0.990 693 18800
853.7 30*0.1519 7*0.1519 0.5437 0.1268 0.6705 1.063 801 17500
853.7 24*0.1519 13*0.1519 0.4349 0.2356 0.6705 1.063 800 19300
927.2 24*0.1583 13*0.1583 0.4723 0.2559 0.7282 1.108 869 20900

5.Packaging and Delivery:

Packaging Details

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.

We are China 0.6-1kv Aluminum Alloy ACAR Conductor For Aerial Power Distribution Lines manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
