0.6/1(1.2)Kv 3×95+1x70sqmm Cu Low Voltage Power Cable XLPE Insulated LSOH Sheathed

 China 0.6/1(1.2)Kv 3×95+1x70sqmm Cu Low Voltage Power Cable XLPE Insulated LSOH Sheathed supplier

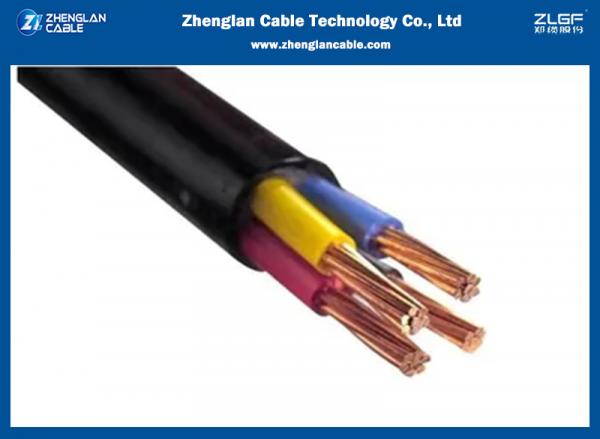

0.6/1(1.2)Kv 3×95+1x70sqmm Cu Low Voltage Power Cable XLPE Insulated LSOH Sheathed image

Get a Quote Email to us

0.6/1(1.2)kv 3×95+1x70sqmm XLPE insulated LSOH sheathed copper cable​

Application:

0.6/1(1.2)kv 3×95+1x70sqmm XLPE insulated LSOH sheathed copper cable are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.

Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228

China: GB/T 12706-2008

Other standards such as BS7870,DIN and ICEA upon request

0.6/1(1.2)kv 3×95+1x70sqmm XLPE insulated LSOH sheathed copper cable​ Construction:

Conductors: Copper , round standed or Shaped, Class 2 to IEC 60228, BS EN 60228.

Core identification
without yellow-green core
2-cores: brown, blue
3-cores: brown, black, grey
4-cores: brown, black, grey, blue
with yellow-green core
3-cores: brown, blue, yellow-green
4-cores: brown, black, grey, yellow-green
5-cores: brown, black, grey, yellow-green, blue

Noted: Insulation color as per standards or customer requirement.

Insulation:

XLPE Insulation material and thickness shall be as per IEC 60502-1 and BS 6346.

PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363. PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.

Outer Sheath:

Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Performance of Cable Sheaths:

0.6/1(1.2)kv 3×95+1x70sqmm XLPE insulated LSOH sheathed copper cable​ can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

0.6/1(1.2)kv 3×95+1x70sqmm XLPE insulated LSOH sheathed copper cable​ Parameters:

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² (3)mm (1)mm (3)mm (1)mm mm mm Kg/Km
3x 16/10 5.0 4.0 0.7 0.7 1.8 20.0 825
3x 25/16 6.3 5.0 0.9 0.7 1.8 22.8 1235
3x 35/16 7.4 5.0 0.9 0.7 1.8 24.8 1565
3x 50/25 8.8 6.3 1.0 0.9 1.8 28.5 2220
3x 70/35 10.6 7.4 1.1 0.9 1.9 32.0 2925
3x 95/50 12.4 8.8 1.1 1 2.1 37.5 3525
3×120/70 14.0 10.6 1.2 1.1 2.2 41.5 4940
3×150/70 15.5 10.6 1.4 1.1 2.3 45.0 6250
3×185/95 17.4 12.4 1.6 1.1 2.5 50.5 7450
3×240/120 20.3 14.0 1.7 1.2 2.6 56.0 9500
3×300/150 22.7 15.5 1.8 1.4 2.8 64.5 12100
3×400/185 25.4 17.4 2.0 1.6 3.1 70.0 18900

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
4×1.5 1.38 0.7 1.8 11 170
4×2.5 1.76 0.7 1.8 12 230
4×4 2.25 0.7 1.8 14 305
4×6 2.76 0.7 1.8 15.5 400
4×10 4.0 0.7 1.8 18 585
4×16 5.0 0.7 1.8 20 835
4×25 6.3 0.9 1.8 22 1210
4×35 7.4 0.9 1.8 24.5 1670
4×50 8.8 1.0 1.8 26.5 2250
4×70 10.6 1.1 2.0 32 3015
4×95 12.4 1.1 2.1 36.5 4085
4×120 14.0 1.2 2.3 40.5 5320
4×150 15.5 1.4 2.4 44.5 44.5 6510
4×185 17.4 1.6 2.6 51 8050
4×240 20.3 1.7 2.8 58.5 58.5 10520
4×300 22.7 1.8 3 64.5 13130
4×400 25.4 2.0 3.3 73.5 16850

0.6/1(1.2)kv 3×95+1x70sqmm XLPE insulated LSOH sheathed copper cable images

1kv multi core power cable 4x16sqmm cu/xlpe/pvc​ Test equipment

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

About Zhenglan Cable Technology Co., Ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
