0.6/1 KV XLPE Insulated Multicore Cable With Copper Conductor For Construction

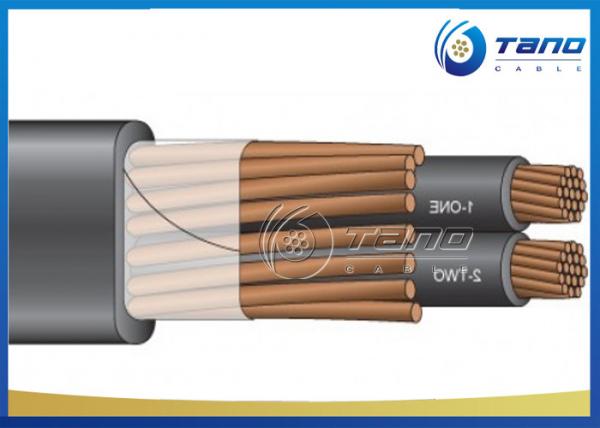

0.6/1 KV XLPE Insulated Multicore Cable With Copper Conductor For Construction image
Brand Name :
TANO CABLE
Model Number :
Concentri Cable
Certification :
ISO, CE,CCC
Place of Origin :
CHINA
MOQ :
20000 Meter/Meters per Week
Payment Terms :
L/C, T/T
Supply Ability :
100 tons per 10 days
Delivery Time :
7-15 days
Packaging Details :
by wooden drum, steel wooden drum, roll
Cores :
single/two/three
Insulation :
XLPE
Conductor :
Copper/Aluminum
Design Standard :
IEC 60502
Application :
Construction
Jacket :
PVC / PE
Color :
Black,Black/Red,Request
0,6/1 kV XLPE Insulated Concentric Conductor Screen Multi-Core Cables with Copper Conductor
Description of concentric cable
These cables are used for power supplies with Protective Multiple Earthing (PME) systems, where a combined Protective Earth (PE) and Neutral (N) – together known as the PEN – connects the combined neutral-and-earth to real earth at multiple locations to reduce the risk of electric shock in the event of a broken PEN.
Application of Concentric Cable
The concentric cable 600/1000V is used as an electric service from the power distribution, to transmit the power to the business center, residential and rural areas.
Standard of Concentric Cable
IEC 61089 IEC 60502 ASTM-B ; ASTM-D; UL
Parameter of Concentric Cable
| Copper Conductor | |||||
| Cable Type |
Conductor | Insulation Thickness |
Concentric Conductor |
Outer Sheath Thickness |
O.D of the cable |
| AWG | mm | mm | mm | mm | mm |
| 3X8AWG | 7/1.23 | 1.14 | 65/0.405 | 1.14 | 11.3×17.3 |
| 3X6AWG | 7/1.55 | 1.14 | 65/0.511 | 1.14 | 13.2×20.0 |
| 3X4AWG | 7/1.96 | 1.14 | 65/0.643 | 1.52 | 14.7×22.9 |
| 3X2AWG | 7/2.47 | 1.14 | 65/0.823 | 1.52 | 16.6×26.3 |
| Size | Phase Conductor | XLPE Insulation | Neutral Conductor | XLPE Sheath | Approx.Weight | ||||||
| Structure | O.D | Thickness | O.D | Structure | O.D | Thickness | O.D | CU | AL | CCA | |
| AWG | No./mm | mm | mm | mm | No./mm | mm | mm | mm | kg/km | kg/km | kg/km |
| 2×8 | 7/1.23 | 3.69 | 1.14 | 5.97 | 25/0.65 | 7.27 | 1.14 | 9.84 | 202 | 97 | 101 |
| 2×10 | 7/0.98 | 2.94 | 1.14 | 5.22 | 25/0.52 | 6.26 | 1.14 | 8.83 | 141 | 74 | 77 |
Construction o
f C
1. Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
2. Insulation: XLPE
3. Neutral Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
4. Binder Tape: Polyester Tape or Semi-conducting Tape
5. Outer Sheath: XLPE
oncentric Cabl
Voltage:600/1000v Bending Radius: Single core: 20D ± 0.05, multi-core: 15D ± 0.05 Temperature Rating: 0°C to 70°C
Packing
We are China 0.6/1 KV XLPE Insulated Multicore Cable With Copper Conductor For Construction manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
