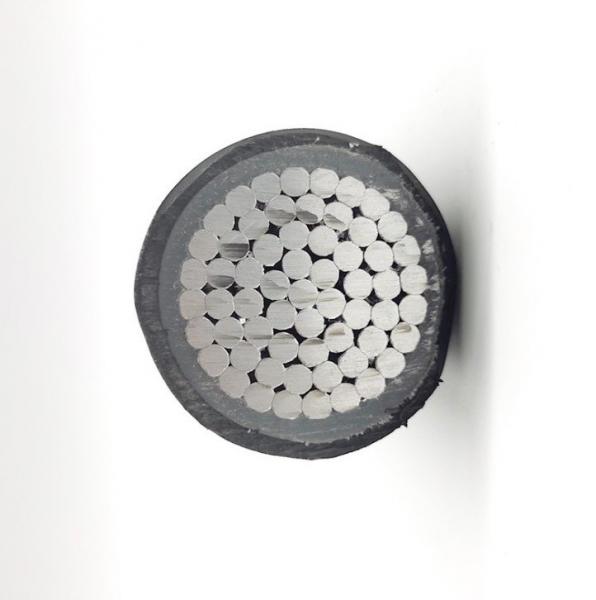

0.6/1 KV Aluminum Core XLPE Insulated PVC Jacket NA2XY Low Voltage Power Cable
0.6/1 KV Aluminum Core XLPE Insulated PVC Jacket NA2XY Low Voltage Power Cable image
Brand Name :
Nuoxing
Certification :
CE/CCC/ISO9001
Place of Origin :
China
MOQ :
1000 meters
Price :
USD 1-100
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 km per month
Delivery Time :
10-20 days
Packaging Details :
standard export packing in wooden drums or boxes
Product Name :
0.6/1 KV NA2XY Low Voltage Power Cable
Conductor :
Solid Conductor, or Class
Insulation material :
XLPE
Application :
Electricity Supply
Type :
Low Voltage
Jacket :
PVC
Standard :
IEC60502
Color :
Customized
Al Conductor XLPE Insulated STA PVC Jacket NA2XBY Low Voltage Electrical Cable
Product description:
Cables are conductors covered with insulation, protective layers, shields, etc. and are used to transmit power, signal current or signal voltage. Compared with low-voltage overhead lines and low-voltage overhead insulated lines, low-voltage cable lines are more costly and difficult to lay and maintain, but due to reliable operation, no poles, no land area, inconspicuous and less influenced by the outside world. Features, widely used in low-voltage distribution system.
Construction:
Single-core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Outer sheath: Polyvinyl chloride PVC
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC
Application:
NA2XBY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV and can be used for laying indoors, tunnels, underground, canals, water and sea bed. The use of steel wire armoring provides excellent mechanical protection.
Specificaiton:
| Product name | Low Voltage Electrical Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 0.6/1 KV |
| Conductor material | Copper/Aluminum |
| Insulation Material | XLPE/PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 – 400MM2 |
Quality commitment:
1. Strictly implement the quality management system, the products conform to the relevant national standards and customer requirements.
2. The products are packed and transported in strict accordance with customer requirements and regulations to ensure the safety and reliability of the products during loading and unloading and transportation.
3. Product per circle of meters, less 1 meter our company add 10 meters.
4. Product implementation of three packages (quality, quantity, price), free technical advice and related technical information for customers.
5. Strict quality control on the procurement of raw materials, product production process quality control points, semi-finished products, finished products, packaging, etc., to ensure excellent product quality and timely delivery.
Low Voltage Electrical Cable
We are China 0.6/1 KV Aluminum Core XLPE Insulated PVC Jacket NA2XY Low Voltage Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
