0.5" / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270

 China 0.5" / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270 supplier

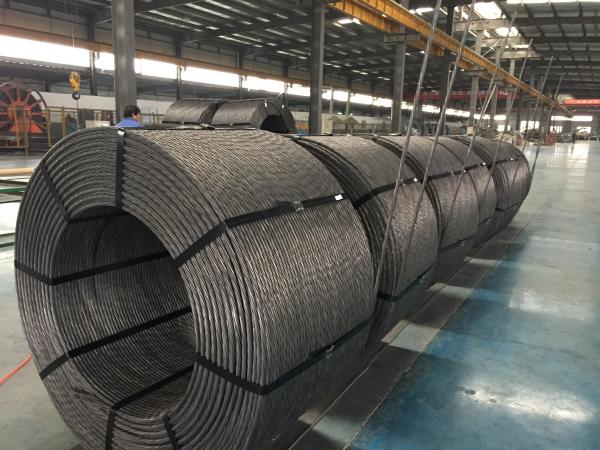

0.5" / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270 image

Get a Quote Email to us

Brand Name :
Litong Global

Model Number :
KT-20180708

Certification :
ISO9001-2008

Place of Origin :
Anhui,China

MOQ :
10tons

Price :
discuss

Supply Ability :
800tons/day

Packaging Details :
standard export packing in coil on 2 pallets

Material :
High Carbon Wire Rod 82B

Structure :
1×7

Size :
0.5″/12.7mm,0.6″/15.24mm

Grade :
1860/270

Standard :
ASTM A 416

Packing :
2.5-3.2tons/coil on 2 pallets

Loading capacity :
25tons/20″

0.5" / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270

0.5"/12.7mm PC Steel Wire Strand(Non-Rotating) Grade 1860/270
Product Description

1*7 Wires Low Relaxation PC Strand
Description:
High tensile low relaxation steel strand for prestressed concrete
Specification:
Raw Material: High carbon steel wire rod SWRH 82B

Sizes:12.5, 12.7, 12.9, 15.2, 15.7, 17.8mm
Standards: ASTM A416-2006, ASTM A910-2005, ABNT NBR 7483:2008, AS 1311(Australia), AS/NZS 4672.1, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006-1983, JISG3536, KSD7002, UNE36094-97 (Spain), NEN3868
Technical date
7-Wire Uncoated Steel Strand for Prestressed Concrete as per ASTM A 416

Min.Breaking Strength

Nominal
Dia.

Dia.
Tolerance

Norminal
Steel
Area

Nominal Weight

Min.
Breaking Load

Min.Load
at 1%Extension

Min.Elongation
Lo≥610mm

0.7 G.U.T.S
1000hNorminal Relaxation

MPA mm mm Mm2 Kg/Km KN KN % %
1860 9.53

+0.66,-0.15

54.84 432 102.3 92.1

≥3.5

≤2.5

11.11 74.19 582 137.9 124.1
12.70 98.7 775 183.7 165.3
15.24 140.0 1102 260.7 234.6
17.80 190.0 1492 353.0 318.0
2000 12.70 +0.66,-0.15 98.7 775 197.4 177.7 ≥3.5 ≤2.5
15.24 140.0 1102 280.0 252.0

7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224

Min.Breaking Strength

Nominal
Dia.

Dia.
Tolerance

Norminal
Steel
Area

Nominal Weight

Min.
Breaking Load

Min.Load
at 1%Extension

Min.Elongation
Lo≥610mm

0.7 G.U.T.S
1000hNorminal Relaxation

MPA mm mm Mm2 Kg/Km KN KN % %
1860 9.50 +0.30,-0.15 54.8 432 102 86.6

≥3.5

≤2.5

11.10 74.2 580 138 117
12.70

+0.40,-0.20

98.7 775 184 156
15.20 140 1101 259 220
15.70 150 1178 279 251
17.80 191 1500 353 318
1960 12.70 +0.40,-0.20 98.7 775 193 174 ≥3.5 ≤2.5
15.20 140 1101 274 247

Usages:
Pre-stressing steels apply to post-tensioned and pre-tensioned concrete structure in the follow civil engineering, building construction and infrastructure projects: bridges; railway sleeper, subway track board; airport; industrial buildings, commercial buildings, residential housing foundations; PC poles, piles, beams, girders, slabs, double-T board, hollow floor board, floor, parking decks, PHC, PPCP; electric power, nuclear power station; ports, dams, water project, sewage treatment, swimming pool; rock-coil anchoring, side slope stabilization, coil mine; storage tank for national gas, oil, grain; stadiums, TV tower etc.

Loading:












































We are China 0.5" / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
