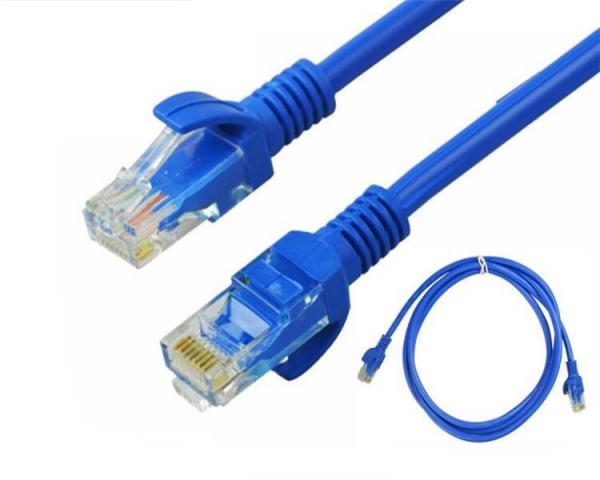

0.4mm Solid Conductor 250MHz Rj45 Utp Cat 6 Network Cables
0.4mm Solid Conductor 250MHz Rj45 Utp Cat 6 Network Cables image
Place of Origin :
Guangdong China (Mainland)
Brand Name :
Hongyan
Model Number :
rj11 rj45 usb bnc lan cable tester
Supply Ability :
1000 Box/Boxes per Day
Packaging Details :
Package as per customer’s request
MOQ :
500 Piece/Pieces
Price :
$0.20 – $20.00 / Piece
Number of Conductors :
8
Product name :
Cat5e Network Cable
Application :
Networking
Inner Conductor OD :
23/24awg
Center Conductor :
BC , CCA,CCC,CCS etc
Remark :
250MHz
Cable Jacket :
PE,PVC
Packing :
Bag
Port :
FOB ShenZhen
RJ45 Cat5 Cat5e Cat6 Cat6e Patch Lan Cable
1.CHARACTERISTIC
|
UTP FTP SFTP Cat5e Lan Cable,Network Cable
|
||
|
Conductor material |
CCA, Copper,CCAG
|
|
|
Conductor diameter |
Solid one: 0.4mm, 0.45mm, 0.5mm
|
|
|
Stranded one: 24 AWG, 26 AWG, 28 AWG
|
||
|
Num of Conductor |
2P, 4P, 5P,10P,20P,50P
|
|
|
Insulation material |
HDPE
|
|
|
Insulation diameter |
0.9±0.02mm
|
|
|
Jacket material |
PVC, ROHS PVC, LSZH
|
|
|
Print words on Cable |
CAT5E 4PR/24AWG VERIFIED TO EIA/TIA 568B.2 ISO/IEC 11801 EN501
|
|
|
UTP FTP SFTP Cat6 Lan Cable,Network Cable
|
||
|
Conductor material |
Copper,CCA,CCAU
|
|
|
Conductor diameter |
Solid one: 0.5mm, 0.56mm, 0.57mm
|
|
|
Stranded one: 23AWG, 24 AWG,28AWG
|
||
|
Num of Conductor |
2P,4P,5P,10P,20P,50P
|
|
|
Insulation material |
PE , HDPE
|
|
|
Insulation diameter |
0.9±0.02mm
|
|
|
Jacket material |
PVC, ROHS PVC, LSZH
|
|
|
Print words on Cable |
CAT6 4PR/24AWG VERIFIED TO EIA/TIA 568B.2 ISO/IEC 11801 EN501
|
|
2. Features
1)Tranmission frequency:100-350MHZ
2)Transmission speed:100-1000mbps
3)Transmission range:100-250m
4)Compliance:ETL verified ANSI TIA/EIA568-2,UL Subject 444.(UL) c(UL) type CMR/CMG.Type CM/CMH.Type CM/CMH,NEC Srticle 800 Type CMP or CM.ISO/IEC 11801.ROHS Compliant.
5)Application: 100 Base-TX, 100VG-AnyLAN, 1000Base-T, ATM, Noisy Environment
6)Electrical characteristics:
*Impedance: 100 ± 15Ω
*Static electric capacity: 17.1nf/kF (maximum)
*Resistance: 28.6/kF (maximum)
*Unbalance resistance: 5% (maximum)
*Unbalance capacity: 330pF/100m (maximum)
*Communicate rate: 65%
We are China 0.4mm Solid Conductor 250MHz Rj45 Utp Cat 6 Network Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 0.4mm 250MHz Cat6 Network Cables, 0.4mm 250MHz rj45 cable, Cat 6 Network Cables, Solid Conductor 250MHz Rj45 CablesSimilar Or Related
